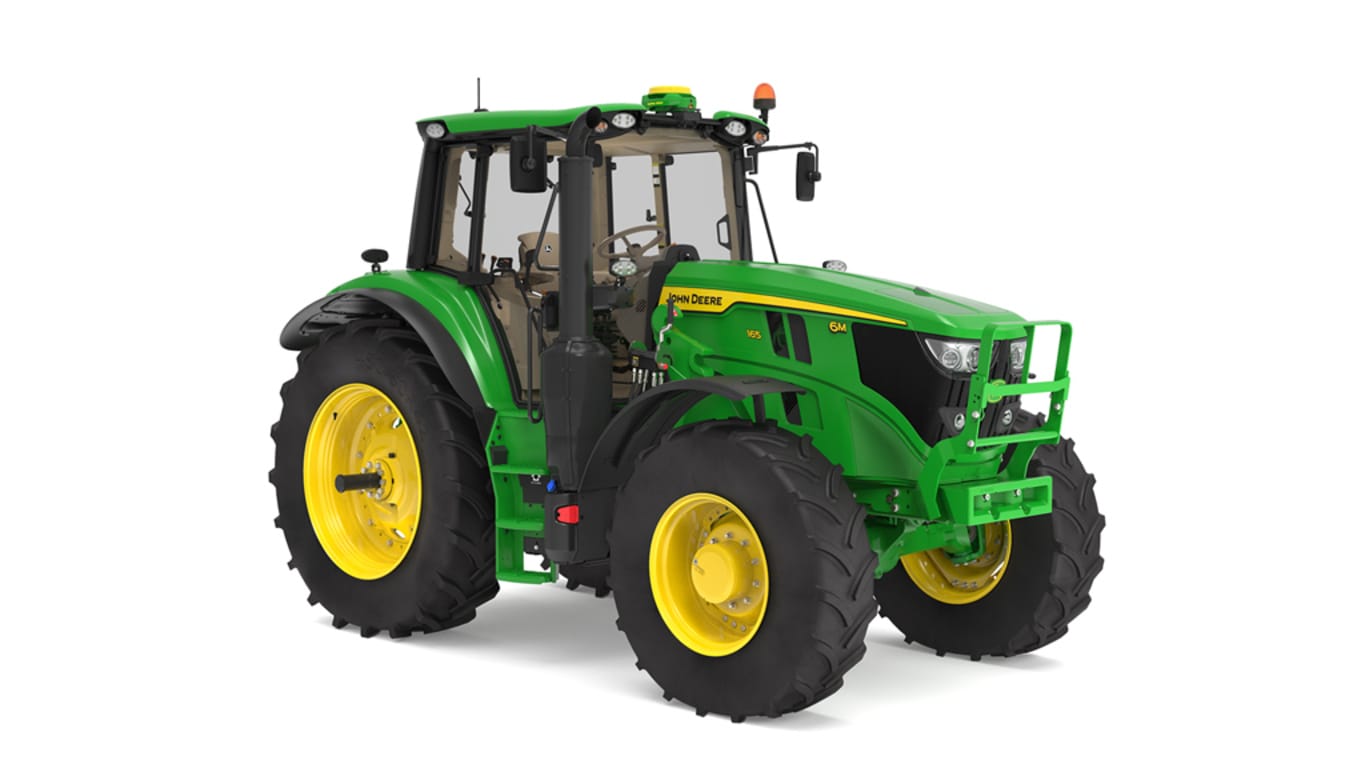

New 6M 165 Utility Tractor

Specifications

Engine description	John Deere PowerTech™ PVS
Engine displacement	6.8 L 415 cu in.
Rated engine power	165 hp 121 kW
Maximum engine power	182 hp 134 kW
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Rated PTO power (hp SAE)	125 hp 93 kW
Maximum PTO power	At 1000 PTO rpm: 107 kW 144 hp
Transmission type	Standard: John Deere 20-speed PowrQuad Plus 40 km/h Optional: John Deere 16-speed PowrQuad Plus 30 km/h John Deere 20-speed AutoQuad Plus 40 km/h & 50 km/h John Deere 20-speed CommandQuad Plus 40 km/h AutoPowr™/IVT™ 40 km/h & 50 km/h
Hydraulic pump rated output	Standard: 45-cc pump: 114 L/min 30 gpm Optional: 60-cc pump: 155 L/min 41 gpm
Rear hitch category (SAE designation)	3N/3
Base machine weight	8000 kg 17,637 lb
Maximum PTO power at rated engine speed with intellegent power management (IPM)

Description	John Deere PowerTech™ PVS
Engine type	6068HL555
Engine family
Rated speed	2100 rpm
Aspiration	Single variable geometry turbocharger
Cylinders liners
Emission level	Final Tier 4
After treatment type	Diesel particle filter (DPF) with diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) using diesel exhaust fluid (DEF)
Displacement	6.8 L 415 cu in.

Rated power	165 hp 121 kW
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)
Rated PTO power (hp SAE)	125 hp 93 kW
Maximum PTO power	At 1000 PTO rpm: 107 kW 144 hp
Intelligent Power Management (IPM)	Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 14.9 kW 20 hp
Power boost	10 percent
Maximum engine power	182 hp 134 kW
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Engine peak torque	773 Nm
Drawbar power
PTO torque rise	40 percent
Fuel injection system and control
Air cleaner type
Maximum PTO power at rated engine speed with intellegent power management (IPM)
Maximum engine torque (without power boost at 1.600 engine rpm)
Maximum engine power with intelligent power management (IPM)

Type	Standard: John Deere 20-speed PowrQuad Plus 40 km/h Optional: John Deere 16-speed PowrQuad Plus 30 km/h John Deere 20-speed AutoQuad Plus 40 km/h & 50 km/h John Deere 20-speed CommandQuad Plus 40 km/h AutoPowr™/IVT™ 40 km/h & 50 km/h
Integrated Electric Power Generation
Reverser	Electronic left-hand reverser
Clutch; wet/dry
Creeper	Not available

Type	Standard/optional: Pressure-and-flow compensated (PFC) system with Load Sensing function
Pump rated output	Standard: 45-cc pump: 114 L/min 30 gpm Optional: 60-cc pump: 155 L/min 41 gpm
Available flow at a single rear SCV
Available flow at front SCVs
Number of rear selective control valves (SCVs)	Standard: Two ISO couplers Optional: Two to four ISO couplers
Number of mid selective control valves (SCVs)	Up to three
Number of front selective control valves (SCVs)
Joystick SCV control	Mechanical/electrical
Auxiliary hydraulic features
SCV control
Available oil flow at a single rear SCV (200 Type)
Available oil flow at a single rear SCV (450 Type)
Available oil flow at a single rear SCV (450E Type)

Hitch draft control load sense type
Remote control valves available	Standard
Hitch category (SAE designation)	3N/3
Rear hitch lift capacity (SAE designation)	Standard: Category 3/3N: 3500 kg 7709 lb Optional: Category 3/3N: 3950 kg 8700 lb
Maximum lift capacity behind lift points	Standard: Category 3/3N: 6800 kg 14,978 lb Optional: Category 3/3N: 7650 kg 16,850 lb
Lift capacity at standard frame
Sensing type	Electronic at lower link
Rear axle differential lock	Electrohydraulically with oil-cooled clutch
Maximum lift capacity directly at coupling points
Throughout lift capacity, 610 mm behind the coupling points

Drawbar category	Category 2
Maximum vertical load	1200-2000 kg (2649-4409 lb) Maximum vertical load dependent on drawbar position

Type	Electrohydraulically operated, oil-cooled, multi-disc design
Engine rpm (at rated PTO speeds)	540 PTO: 1997 rpm 1000 PTO: 2010 rpm
Economy PTO speeds
Reverse PTO speeds
Multispeed PTO option availability
Ground speed PTO option availability
PTO actuation	In-cab switch and optional external fender-mounted remote control
Engine rpm at rated PTO speeds (540/1.000)
Engine rpm at rated PTO speeds (540/540E/1.000)
Engine rpm at rated PTO speeds (540E/1000/1.000E)

Category	3N
Electric power	Seven-pin electrical socket
Standard lift capacity	At hook ends: 3300 kg 7269 lb
Front power take-off (PTO)	Electrohydraulically engaged with oil-cooled, multi-disc design
PTO speed	1000 PTO: 1969 rpm

Type	Standard: Rack-and-pinion rear axle - 92-mm (3.6 in.) shaft (2.550-m/100.4 in.) Optional: flange-type rear axle Rack-and-pinion rear axle - 92-mm (3.62 in.) shaft (2806-mm/110.5 in.)
Final drive type	Three planetary gear reduction
Differential controls
Axle type
Brakes, type and control
Rear differential lock	Electrohydraulically with oil-cooled clutch
Load rating

Type	Standard: MFWD Optional: Triple-Link Suspension (TLS) MFWD axle (hydro-pneumatic, permanently active, triple link, self-leveling suspension with 100-mm [3.9-in.] suspension range) Triple-Link Suspension MFWD with brakes
Front axle differential lock	Self-locking differential
Load rating

Front	420/85R28
Rear	480/80R42
Wheel tread range
Turning radius with brakes
Turning radius without brakes
Central Tire Inflation System (CTIS)

Tread spacing
Drive type
Track width
Mid-rollers

Type	Dynamic load sensing, hydrostatic, flow metering

Primary brake (foot brake)
Secondary brake
Park lock
MFWD braking
Front axle brakes
Auxiliary brakes
Hydraulic trailer brakes
Pneumatic trailer brakes

Alternator size	Standard: 14 V/125 amp Optional: 14 V/250 amp
Battery options	Standard: 12 V/154 amp-hr Optional: 12 V/174 amp-hr
Working lights
Type of bulb in headlight (Halogen, Zenon, LED)
Type of bulb in beacon (Halogen, Zenon, LED)
dB(A) rating for backup alarm
Total cold cranking amps

Rollover protective structure, OOS	Gearshift location - console/floor Console
Seat	Standard: Standard seat with air suspension Optional: Economy seat with mechanical suspension
Cab suspension	Optional: Mechanical Cab Suspension (MCS)
Instructional seat	Optional
Display	Cornerpost display (right-hand A-post) Functionality: Performance monitor and individual settings
Radio	Standard: Standard AM/FM stereo
Inner cab volume	3.0 m3 105.9 cu ft
dB(A) rating	70 dBA
Cab glass area	4.85 m2
Safety glass rating
Front visibility

Wheelbase	2765 mm 108.9 in.
Overall width	2550 mm 100.3 in. (420/85R28 & 480/80R42)
Overall length	4733 mm 186.3 in. (inc. weight bracket)
Overall height	2980 mm 117.3 in.
Drawbar clearance
Front axle center	535 mm 21.1 in. (ground clearance)
Approximate shipping weight, Open;Cab	Cab: 7800 kg 17,196 lb

Base machine weight	Front axle 3200 kg 7055 lb Rear axle 4800 kg 10,582 lb 8000 kg 17,637 lb
Maximum ballast level
Maximum permissible weight	11,000 kg 24,251 lb

Crankcase oil volume	23.5 L 6.2 U.S. gal.
Fuel tank	285 L 75.3 U.S. gal.
Diesel exhaust fluid (DEF) tank	16 L 4.2 U.S. gal.
Cooling system	27.4 L 7.2 U.S. gal.
Transmission-hydraulic system	PowrQuad Plus/AutoQuad Plus/CommandQuad Plus: 63.0 L 16.6 U.S. gal. AutoPowr/IVT: 62.0 L 16.4 U.S. gal.

Interval for engine oil change	500 hours
Interval for hydraulic/transmission oil change	1500 hours
Interval for engine coolant change	6000 hours

Loader	640R
Lift capacity at full height	MSL: 2284 kg 5035 lb NSL: 2632 kg 5803 lb
Maximum lift height	MSL: 4.3 m 170.3 in. NSL: 4.3 m 170.4 in.
Leveling type

Guidance	Optional: AutoTrac™ with Universal Display
Telematic	Standard: JDLink™
Remote diagnostics	Standard: JDLink™
Connectivity

AutoTrac ready
ISOBUS ready
CommandCenter video inputs
Immobilizer
Side slope rating
Uphill/downhill slope rating
Country of manufacture	Germany

Date collected	25-Jun-24
